Fiber Laser Cutting machine with auto loading and unloading system model SFG
Automatic loading and unloading system
Laser loading and unloading robots can realize more economical and safe production through automatic loading and unloading.
The loading and unloading device forms the most compact automation unit of the warehousing system through the linear axis. The system consists of a laser cutting machine, a laser loading and unloading robot, and an electric exchange trolley.
For more details, please fill in the form of interest.
GUARANTEE
2 YEARS
SUPPORT
ALL OVER GREECE
DESCRIPTION
| Models | SFG3015 |
| Working Area(mm) | 3000 * 1500 / 4000 * 2000 |
| Source Type | RAYCUS (China) SENFENG (China) IPG (Germany) |
| Head Type | SENFENG(China) Raytools (Switzerland) Precitec (Germany) |
| Maximum Feed Height | 120mm |
| Single layer bearing weight | 3Τ |
| Cycle Time | 175s |
| Laser Power | 1.5KW/2KW 3.3KW/4KW 6KW/8KW 12KW/36KW |
| Maximum velocity of movement | 120m/min up to 180m/min |
| Maximum Acceleration | 1.2G |
| X/Y Axis positioning accuracy | ±0.05mm/m |
| X/Y Axis repeated positioning accuracy | ± 0.02mm |
TECHNICAL SPECIFICATIONS OF THE LASER MACHINE
| Aiding Gas | Nitrogen, Oxygen for Carbon Steel |
| Z Axis | 365mm |
| Power Supply | 380v, 50hz |
| CNC Software | CYPCUT BCS 100 ή ANCA |
| Constant wave fiber laser | wavelength 1.07 um |
| Beam Quality | <0.373 mrad |
| RAYCUS source | RFL-C1500, RFL-C2200, RFL-C3300, RFL-C4000 |
| IPG Source | YLS-K |
| Cooling System | TeYu CWFL-1500, CWFL-2000, CWFL-3000, CWFL-4000 |
| Linear guide system | XYZ Servo Motors: Schneider ή Delta Y 2x1500W, X 1x1000W, Z 1x400W |
Loading tooling

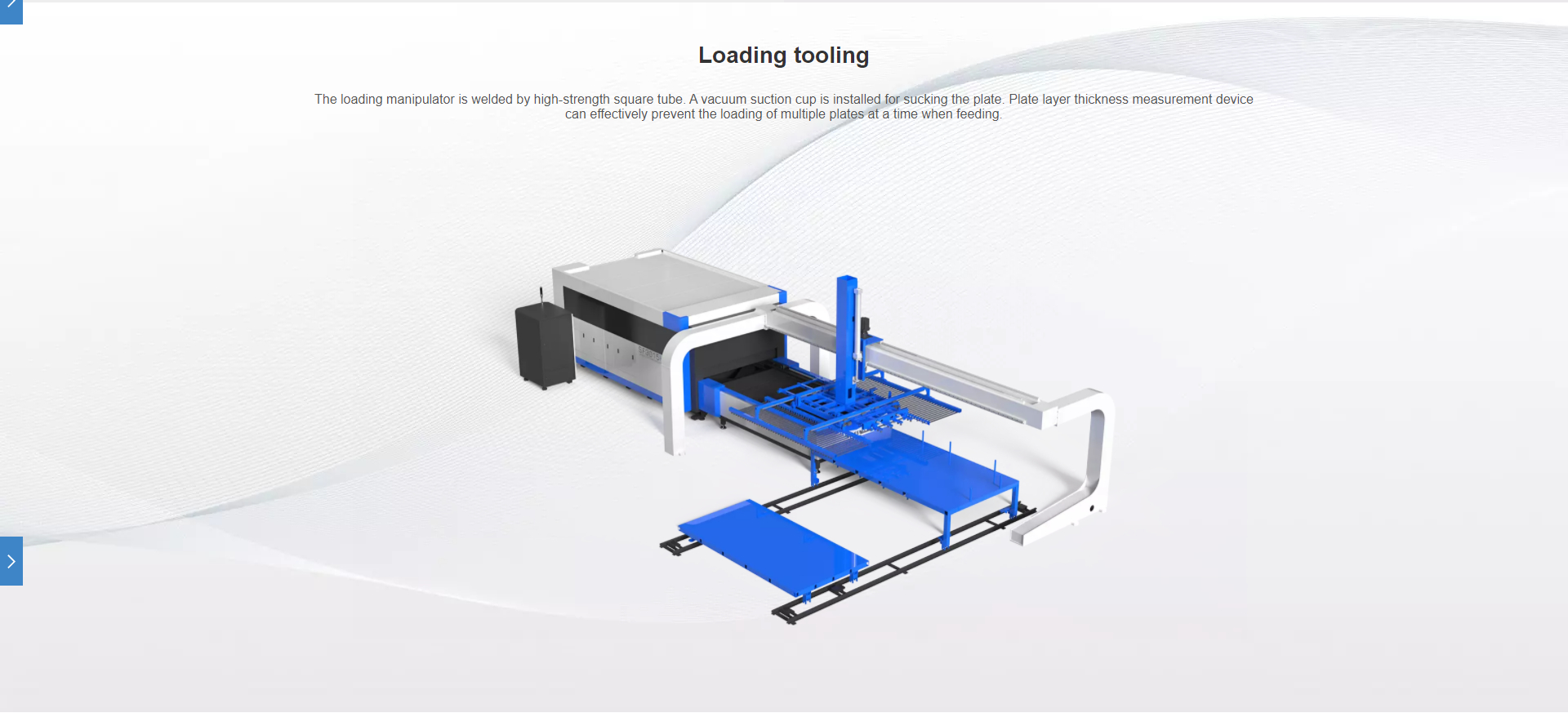

The loading manipulator is welded by high-strength square tube. A vacuum suction cup is installed for sucking the plate. Plate layer thickness measurement device can effectively prevent the loading of multiple plates at a time when feeding.
Unloading tooling

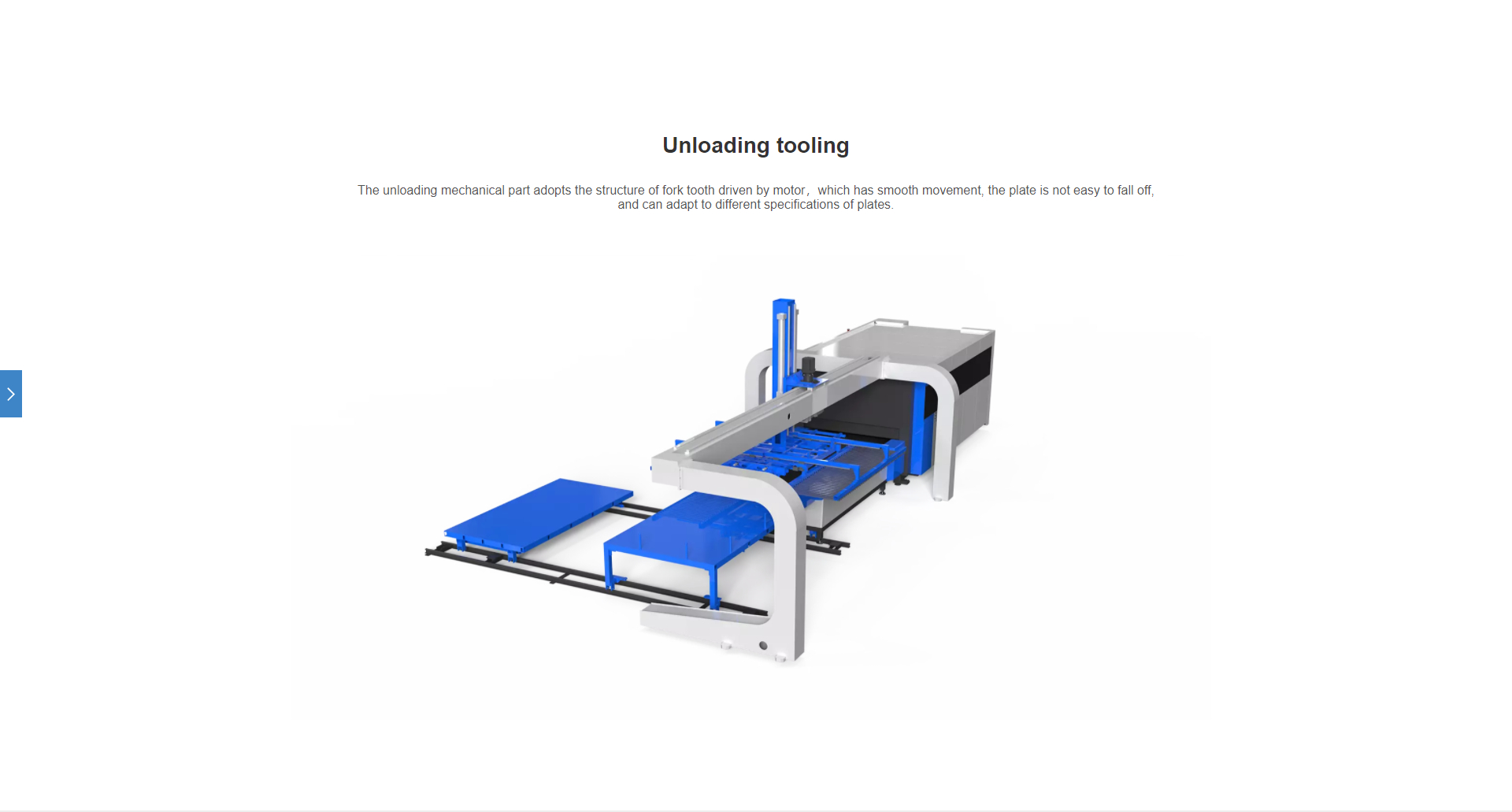

The unloading mechanical part adopts the structure of fork tooth driven by motor，which has smooth movement, the plate is not easy to fall off,and can adapt to different specifications of plates.
Truss fuselage
Stable performance, easy installation and debugging
Automated operation
Unmanned working cycle, improve the utilization rate of laser cutting machine
PLC control
Using PLC controller, independent and development software
Expansion package
Equipped with a whole set of storage units, the production cycle is more optimized.
High precision
Servo drive, high precision
Roller table positioning
Equipped with roller table positioning to reduce the time for edge search.
Cutting Materials
Carbon steel, Stainless steel, Galvanized steel, Steel with Zinc, Aluminum, Bronze, Copper e.t.c.
